Item # SNX20PT4.2-C

20PT4 PinTail™ Anchor

Log in for Price

  • Minimum Order Qty: 0.050
  • Must Order in Multiples of: 0.050
  • Pkg Qty: 0.050
  • Case Qty: 0.048
  • Log in to see if custom discounts apply
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
SNX20PT4.2-C 20PT4 PinTail™ Anchor
Click image to enlarge

Item # SNX20PT4.2-C

20PT4 PinTail™ Anchor

  • UM: M
  • Weight: 330.500

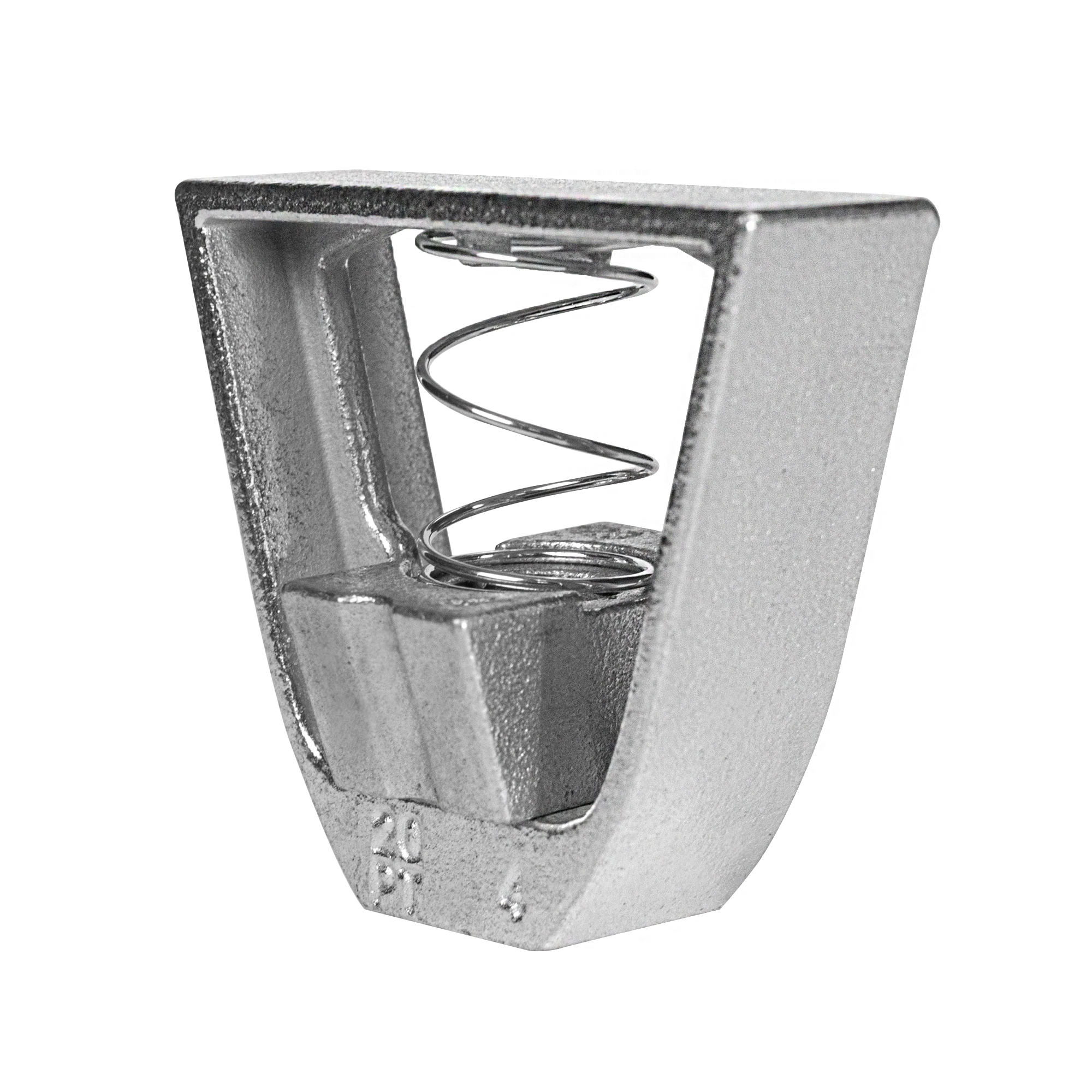

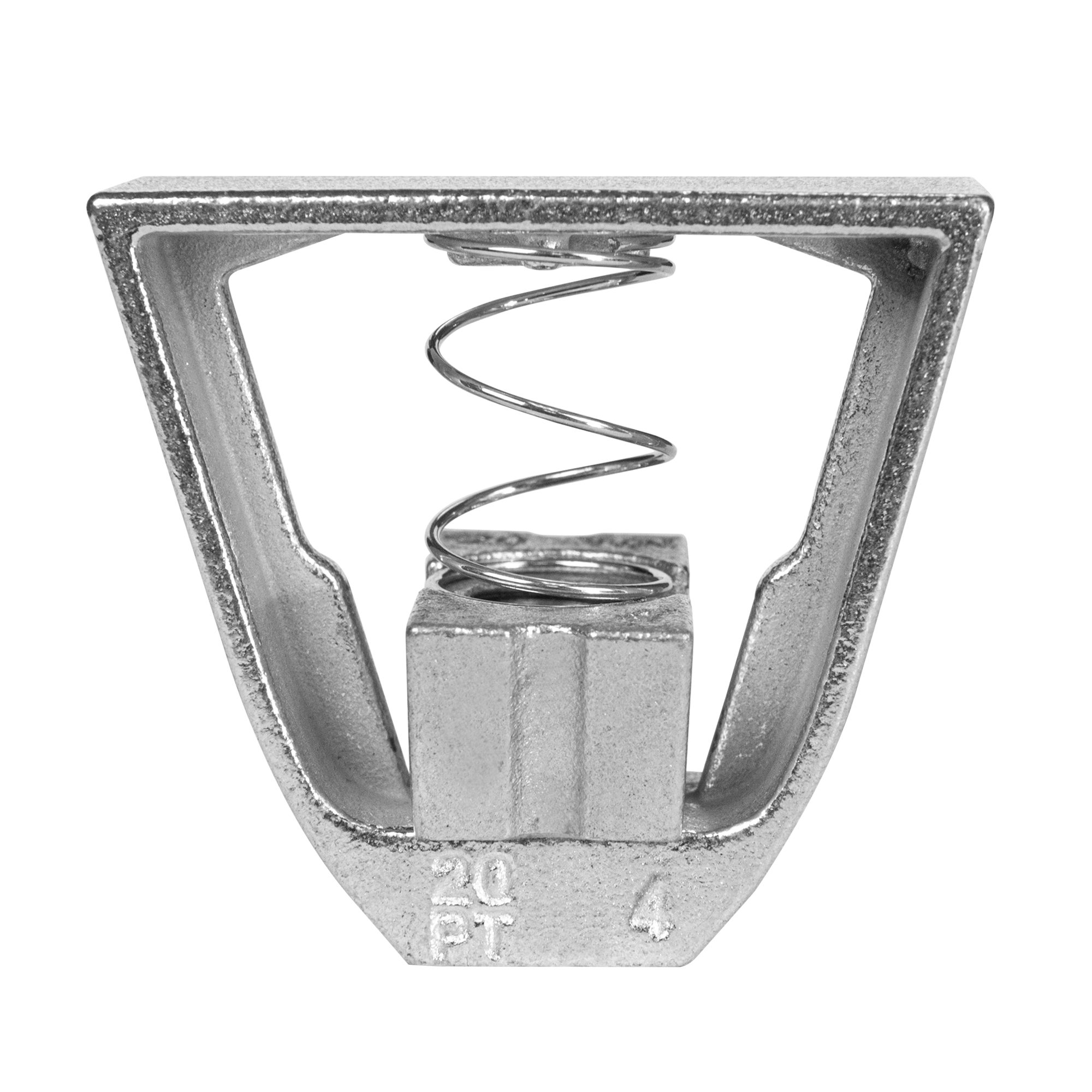

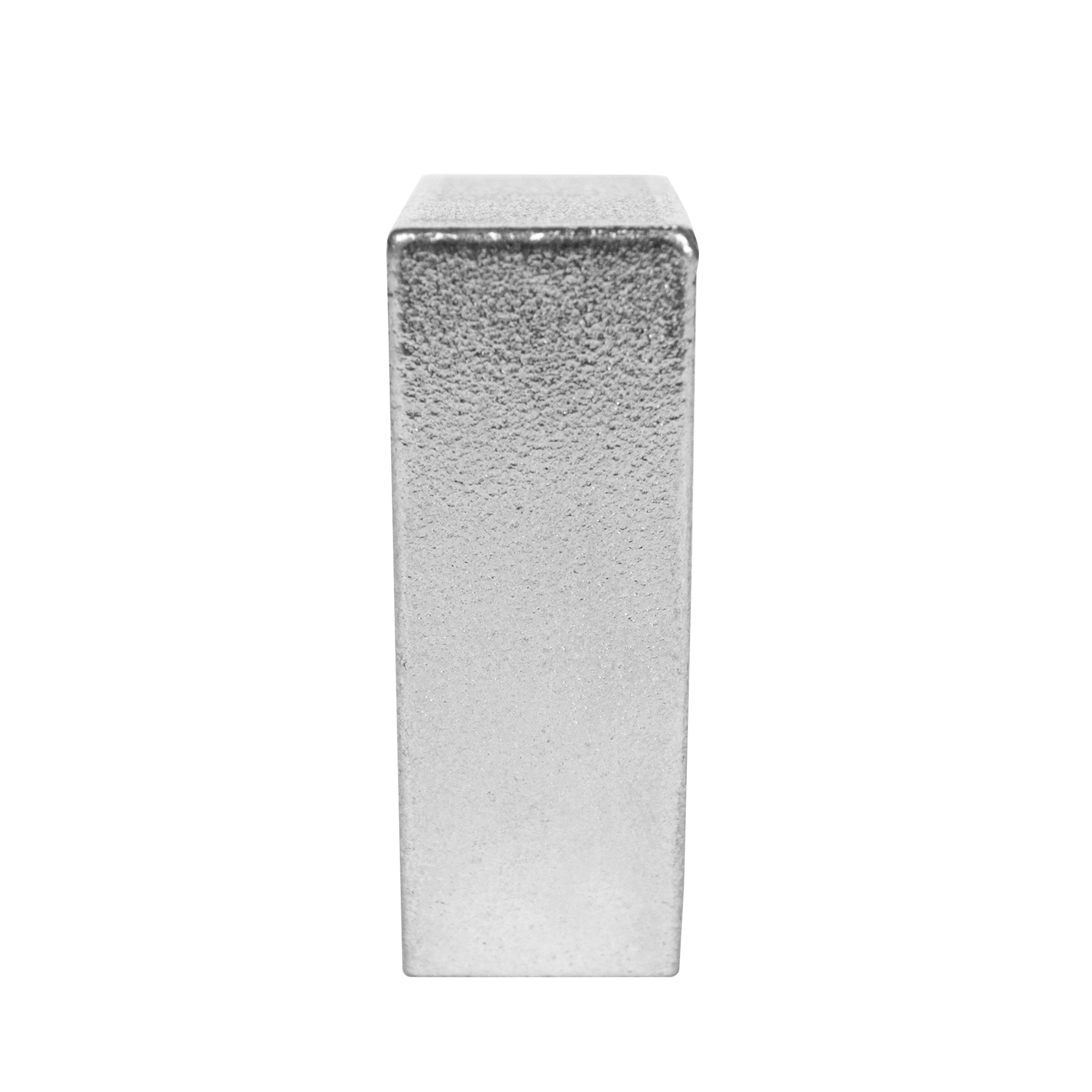

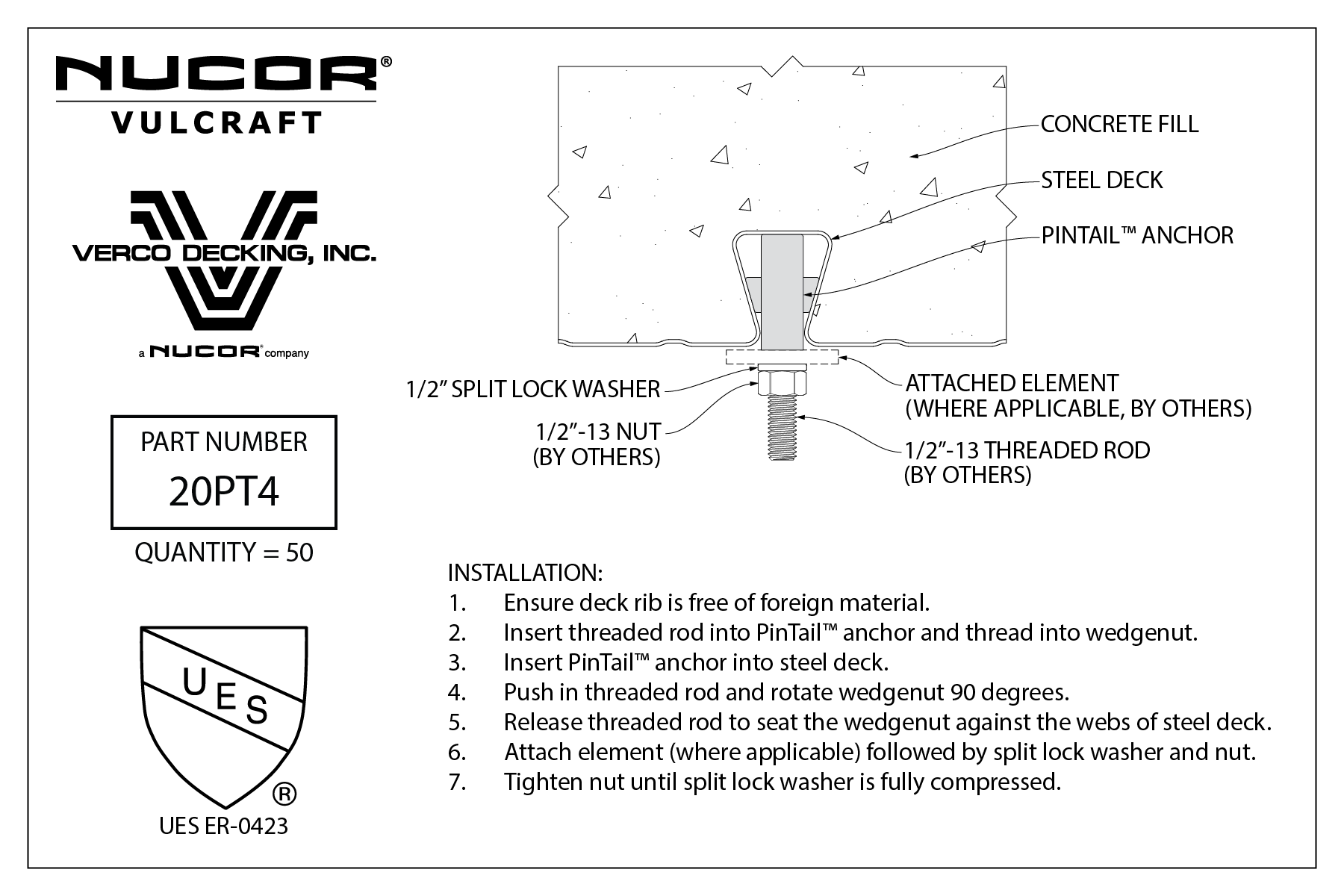

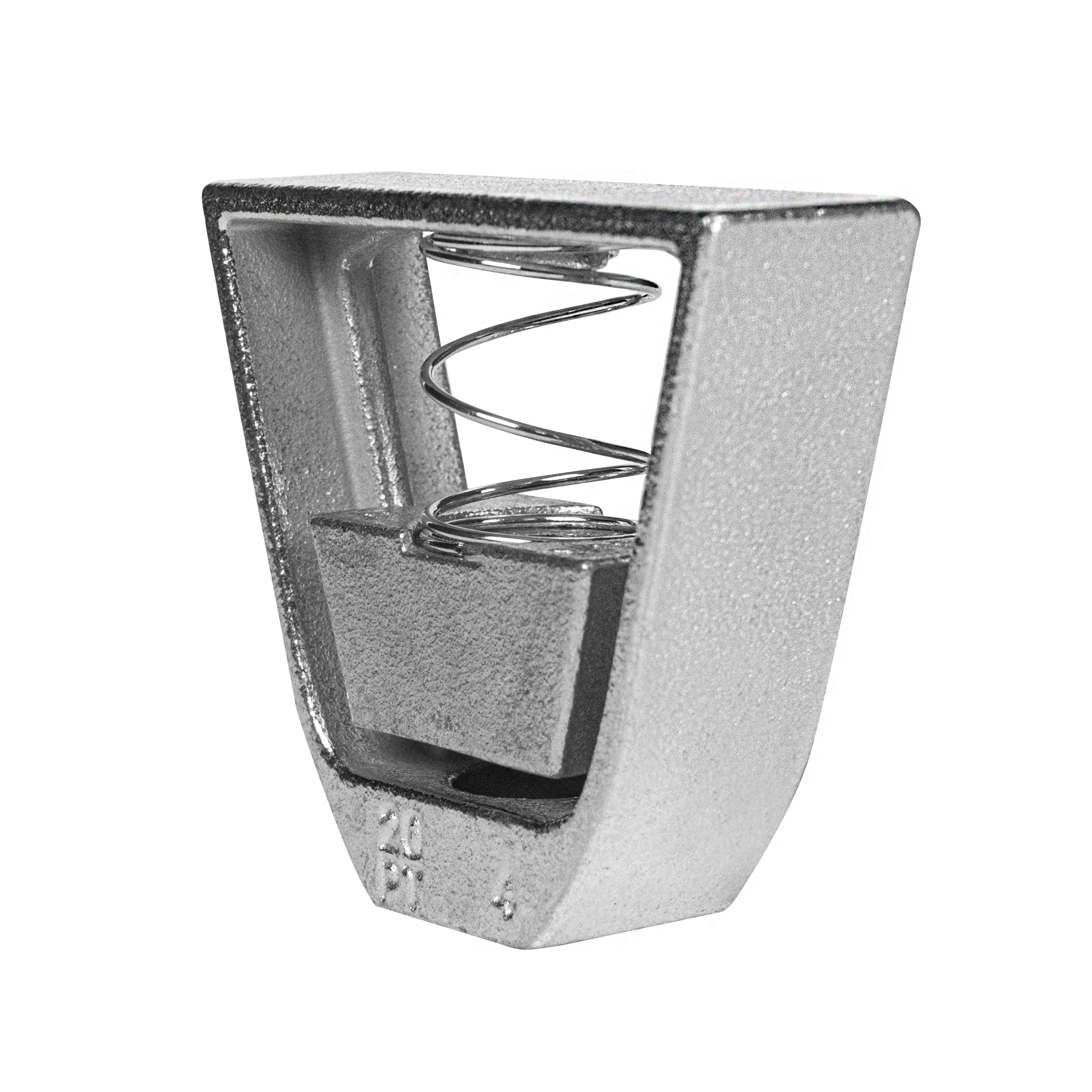

The 20PT4 PinTail™ anchor is designed to be used with a 1/2”-13 threaded rod in 2-inch deep (2.0DS-30 FL or 2.0DF-30 FL) Vulcraft/Verco FormLok® Dovetail decks. The 20PT4 PinTail™ anchor comes with a 1/2” split lock washer. Threaded rod and nut are sold separately.

  • Requires no drilling
  • Relocatable
  • Tested and approved hanging and bracing

Minimum Order Qty: 0.050

Available Only in Qtys of: 0.050

Pkg Qty: 0.050

Specifications
Height 2"
Thread Size 1/2" - 13
Coating Zinc Clear
